Dettagli:
|

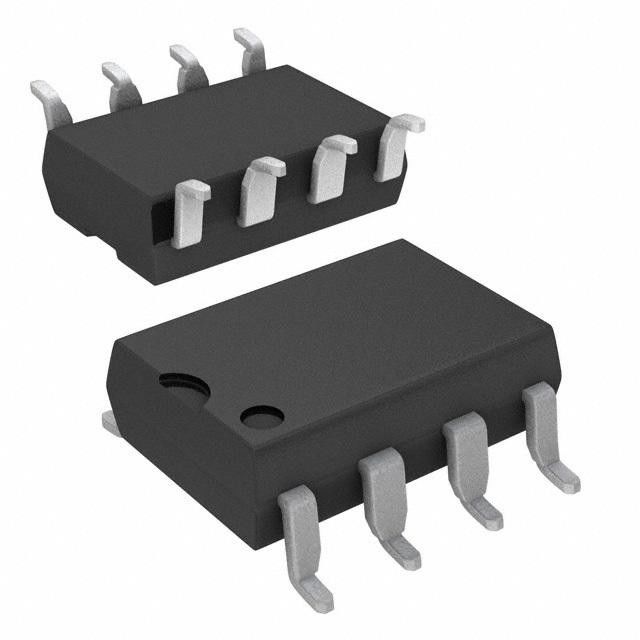

| Numero del pezzo: | MCT62S | Produttore: | Semiconduttore di Fairchild/ON |
|---|---|---|---|
| Descrizione: | TRANSISTOR 8SMD DI OPTOISO 5KV 2CH | Categoria: | Optoisolators - transistor, uscita fotovoltaica |
| Famiglia: | Optoisolators - transistor, uscita fotovoltaica |
| Part Status | Active |
|---|---|
| Number of Channels | 2 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 2.4µs, 2.4µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
